SMS Gateway Link Server


Limited Support

UniRes Support does not control or help with SMS problems. Call your Clicksend support for assistance first if you have a problem.

Check your SMS balance and your Internet connection if problems persist.



Quite a few changes to make the SMS sending easier and more imformative.

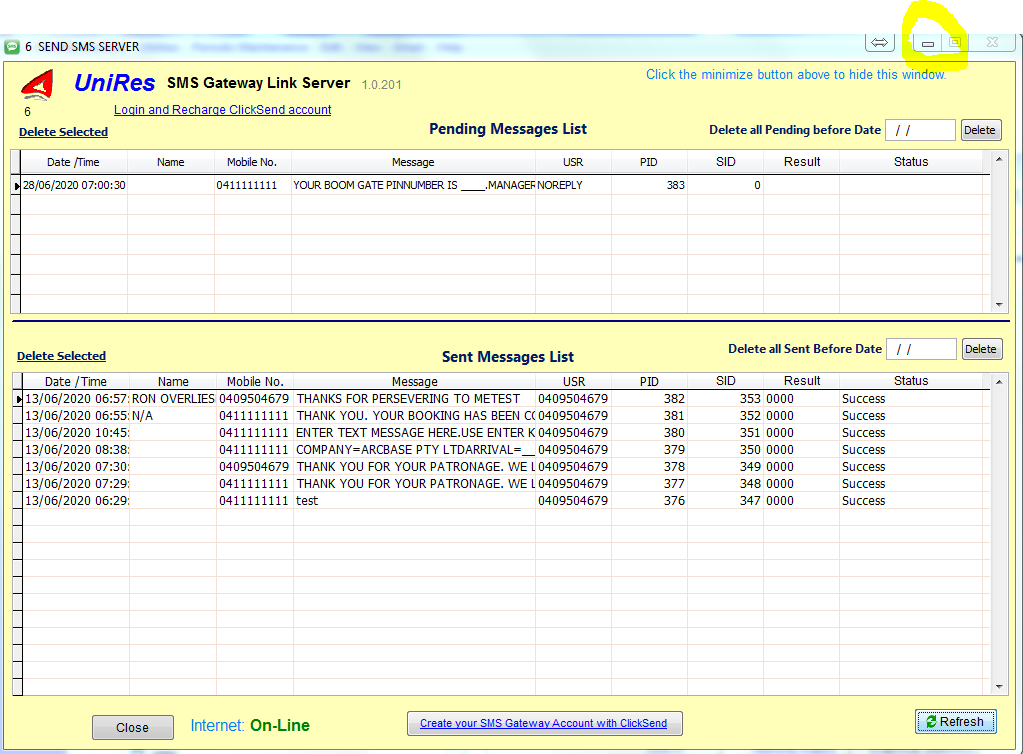

Click on the SMS Link Server Icon to view the Status window (Pending and Sent Messages).



SMS sending facility.  Note: 0411 1111 1111 (no spaces), is a test number and will not be sent anywhere or deduct from your credit balance.. It does show in your Clicksend on-line account facility under SMS - History.





The smsauto Link server program that launches and sits in the task bar now does a count in the task bar to give an indication that it is doing something. It counts to 10 then sends the messages in the send queue.


SMS's sending is halted when the smsauto link server is taken from a minimised state to a window screen (inquiry). SO.. use the minimise button on the link server window, to put the sms link server back into send mode.




To Stop the server, click on the Close button. Existing messages will be queued in the Pending File.


You can still compile sms messages and "store" them off line if the SMS server is off-line or has been Closed.


Restarting the SMS Link Server with the internet working will immediately send any queued messaged for today.


Remember that messages not sent will not be sent past Midnight.


Expired messages will have to be deleted manually using the Delete button.



In the above example, there is a messages waiting to be sent.


When the Internet comes back on, it takes about 10-20 seconds for the server to detect this and sent the messages. This is normal and deliberate, to allow network activity to settle.


Minimize Button


Task Bar ICON now showing a sliding animation when actively testing for messages to be sent from the message queue.



The Icon will have a red cross in it when the Computer goes off-line if the Internet Fails.



IMMEDIATE SEND


When you type in or select a predefined message to send, clicking on send will IMMEDIATELY add the message to the send queue.























See the Whats New Help. Topic in development.
